Woodboring Drills | Pneumatic | CS Unitec
Original price was: $2,131.20.$1,558.99Current price is: $1,558.99.
74 in stock
Description

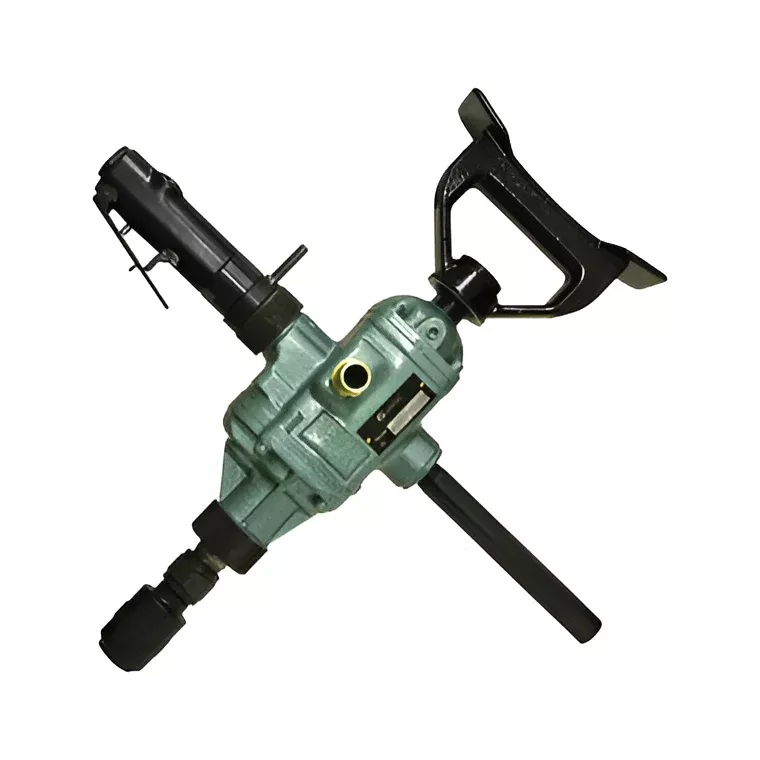

CS Unitec Pneumatic Woodboring Drills
Product Description
Heavy-duty power for underwater drilling and other woodboring applications
Woodboring Air Drills – Reversible
- Ideal for drilling wood in marine timbers, underwater use and railroad repair work
- 1/2″ woodboring chuck style
- Thrust bearing support for long life and efficient operation
- Lever throttle and durable spur gearing
- Breast plate and dead handle included
- Includes threaded exhaust port
- Use underwater with Air Tool Line Conditioner P/N MS 9105 (see below)
Accessories and woodboring drill bits from 1/2″ dia. to 1-1/8″ dia. in lengths from 12″ to 36″
1″ Capacity
| Model No | 2 1903 0010 |
| Capacity in Wood | 1″ diameter |
| Reversible | Yes |
| Power | 2 HP |
| Chuck Style | 1/2″ woodboring |
| Spindle | Stub Taper |
| Free Speed | 750 RPM |
| Recommended Hose Size | 1/2″ |
| Overall Height | 17-1/2″ |
| Weight | 14-1/2 lbs. |
| Air Inlet Thread | 1/2″ ID |
| Air Exhaust Thread | 1/2″ NPT |
| Air Consumption at 90 PSI | 39 CFM |
| Optional Geared Drill Chuck | Part no. DE-99C |
2″ Capacity
| Model No | 2 1924 0010 |
| Capacity in Wood | 2″ diameter |
| Reversible | Yes |
| Power | 3 HP |
| Chuck Style | 1/2″ woodboring |
| Spindle | 2 Morse Taper |
| Free Speed | 700 RPM |
| Recommended Hose Size | 1/2″ |
| Overall Height | 18-1/2″ |
| Weight | 24-3/4 lbs. |
| Air Inlet Thread | 1/2″ ID |
| Air Exhaust Thread | 1/2″ NPT |
| Air Consumption at 90 PSI | 39 CFM |
| Optional Geared Drill Chuck | Part no. IBC 22 (MT2) |
3″ Capacity
| Model No | 2 1932 0010 N |
| Capacity in Wood | 3″ diameter |
| Reversible | Yes |
| Power | 3 HP |
| Chuck Style | 1/2″ woodboring |
| Spindle | 3 Morse Taper |
| Free Speed | 380 RPM |
| Recommended Hose Size | 1/2″ |
| Overall Height | 18-1/2″ |
| Weight | 23-3/4 lbs. |
| Air Inlet Thread | 1/2″ ID |
| Air Exhaust Thread | 1/2″ NPT |
| Air Consumption at 90 PSI | 39 CFM |
| Optional Geared Drill Chuck | Part no. IBC 21 (MT3) |
Product Document
- Brochure
- Schematics: 2 1903 0010
- Schematics: 2 1924 0010
