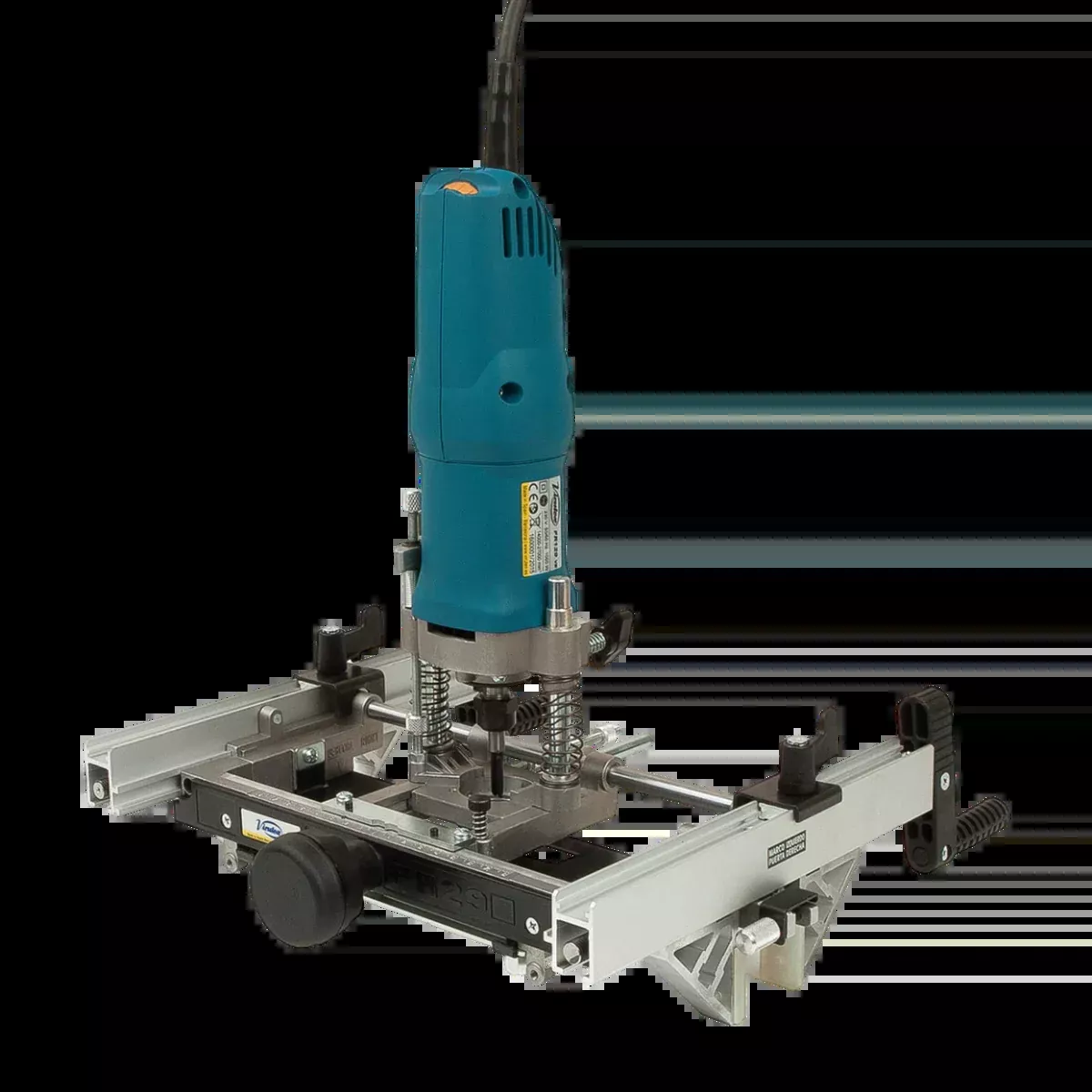

Virutex Router For Fitting Hinges FR129VB (120V) 2900815

Virutex Router For Fitting Hinges FR129VB (120V) 2900815

Original price was: $507.00.Current price is: $354.18.

51 in stock

SKU: 2900815 Category:

Description

1,000W Hinge Router • Measurement-Free Setup • Concealed & Square Hinge Compatible

Virutex Router For Fitting Hinges FR129VB 2900815 (120V)

A dedicated 1,000W hinge routing system that eliminates manual measurement from door fitting. Clamps directly to doors and frames, positions 3 or 4 hinges accurately via a fast-install template system, and handles both concealed and square hinges with a double depth stopper for simultaneous mortising in a single pass.

Applications

  • Concealed and standard square hinge installation on doors and frames
  • Door and cabinet hardware fitting
  • Cremone lock and strike plate mortising
  • Professional door production and installation workflows

Ships complete with carbide bit (1/2″), guide ring, distributor rods, service keys, and wooden storage box.

Specifications

Model FR129VB
Input Power 1,000 W
Voltage 120V
Chuck Diameter 1/4″
Cutting Travel (Length) 6-1/2″ (165 mm)
Cutting Travel (Sideways) 3″ (74 mm)
Clamp Vise Opening 1-5/16″ (33 mm) to 10″ (250 mm)
Weight 11 lbs

Construction & Performance

  • Measurement-free template system positions 3 or 4 hinges per door accurately without layout marks or manual measuring between units.
  • Double depth stopper mortises both hinge leaf depths simultaneously in a single operation, cutting setup time per door.
  • Adjustable clamp vise opens from 1-5/16″ to 10″, securing the router to door and frame edges without surface damage.
  • Electronic speed regulation holds constant RPM under load for smooth, consistent material removal across the full mortise.
  • Concealed and square hinge compatibility with 1/4″ radius covers the full range of standard residential and commercial door hardware.
  • Extended functionality handles cremone lock and strike plate mortising beyond standard hinge work.

Why the FR129VB

  • Measurement-free setup cuts per-door installation time significantly on multi-door jobs.
  • Double depth stopper eliminates the two-pass mortising process for doors requiring different hinge leaf depths.
  • Clamp range of 1-5/16″ to 10″ covers standard door and frame thicknesses without adapters.
  • Complete accessory kit ships ready for production use with no additional purchases needed.

Precision Hinge Routing • Fast Setup • Professional Door Installation

Virutex Router For Fitting Hinges FR129VB (120V) 2900815

The Virutex Router For Fitting Hinges FR129VB (120V) 2900815 is a specialized routing system engineered for fast, precise, and repeatable hinge installation on doors and frames. Designed for professional woodworking and door fitting applications, this high-performance router eliminates the need for manual measurements by enabling quick setup and accurate placement of 3 or 4 hinges per door. With advanced clamping, guided templates, and powerful motor performance, it delivers consistent, high-quality results across residential and commercial projects.

Virutex Router For Fitting Hinges FR129VB (120V) 2900815 Applications

  • Installation of concealed hinges on doors and frames
  • Routing standard square hinges with precision
  • Door and cabinet hardware fitting
  • Mortising for cremone locks and strike plates
  • Professional door production and installation workflows

Designed for fast, measurement-free hinge installation with consistent professional results.

Virutex Router For Fitting Hinges FR129VB (120V) 2900815 Specifications

Model FR129VB
Input Power 1000 W
Voltage 120V
Chuck Diameter 1/4″
Milling Cutting Travel (Length) 6-1/2″ (165 mm)
Milling Cutting Travel (Sideways) 3″ (74 mm)
Clamp Vises Opening 1-5/16″ (33 mm) to 10″ (250 mm)
Weight 11 lbs

Virutex Router For Fitting Hinges FR129VB (120V) 2900815 Performance & Construction

  • Measurement-free hinge installation allows quick and accurate placement of 3 or 4 hinges per door regardless of orientation.
  • Advanced adjustable clamp system securely fixes the router to doors and frames without damaging surfaces.
  • Fast-installation template system ensures rapid setup and stable positioning for consistent routing results.
  • Double depth stopper system enables simultaneous mortising of both hinge depths in a single operation.
  • Versatile hinge compatibility supports concealed hinges and standard square hinges with 1/4″ radius.
  • Powerful 1000 W motor delivers strong cutting performance for efficient material removal.
  • Electronic speed regulation maintains constant speed under load for smooth, precise routing.
  • Extended functionality suitable for installing cremone locks and strike plates.
  • Complete accessory package includes carbide bit (Ø 1/2″), guide ring, distributor rods, service keys, and wooden storage box.

Why Choose the Virutex Router For Fitting Hinges FR129VB (120V) 2900815

  • Streamlines hinge installation with fast, measurement-free setup.
  • Delivers precise and repeatable results across multiple doors.
  • Handles both concealed and standard hinge routing applications.
  • Includes complete accessories for immediate professional use.
  • Built for durability, efficiency, and high-performance woodworking environments.

The Virutex Router For Fitting Hinges FR129VB (120V) 2900815 is a professional-grade solution that enhances productivity, accuracy, and consistency in door fitting and hinge installation applications.
