Pneumatic Vacuum • 800 gr/cm² at 6 Bar • Horizontal & Vertical Use

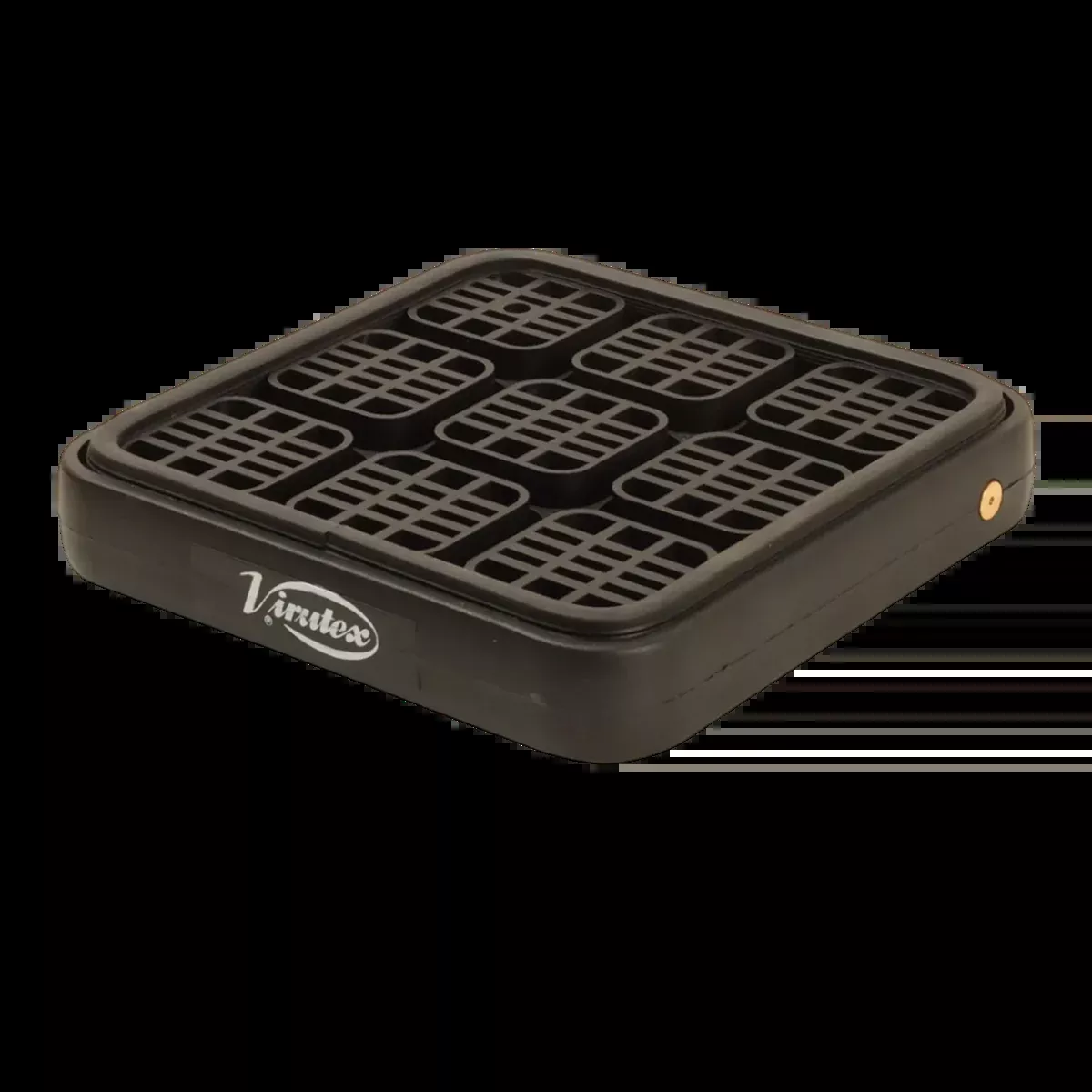

Virutex DUO-Sided Vacuum Pad 5046773
A dual-sided pneumatic vacuum pad that clamps to both the workpiece and support surface simultaneously for stable, non-marking hold on smooth, non-porous materials. Rated at 800 gr/cm² at 6 bar, it works in horizontal and vertical orientations for routing, trimming, sanding, and precision machining on laminates, glass, and finished panels.
Applications
Clamping laminates, glass, and finished panels during machining
Routing, trimming, and sanding smooth non-porous workpieces
Holding small and large components without edge access
Vertical and horizontal work positioning
Workshop and on-site tasks requiring non-marking clamping
Requires a compressed air supply at 6 bar for rated clamping force.
Specifications
Part Number
5046773
Type
DUO-Sided Pneumatic Vacuum Pad
Clamping Force
800 gr/cm² at 6 bar
Surface Compatibility
Smooth, Non-Porous Materials
Mounting
Horizontal and Vertical
Construction & Performance
Dual-sided vacuum system anchors to both the workpiece face and the support surface at the same time, eliminating the movement that single-sided pads allow under lateral cutting forces.
800 gr/cm² clamping force at 6 bar provides firm, reliable hold across the full range of supported materials without mechanical clamps or edge fixtures.
Non-marking contact surfaces leave no residue or impressions on finished laminates, glass, or coated panels after release.
Horizontal and vertical capability extends use beyond flat bench work to vertical panel processing without repositioning the workpiece.
Quick setup and repositioning keeps changeover time low between workpieces on production tasks.
Why the 5046773
Dual-sided attachment resists lateral movement during routing and trimming better than single-sided vacuum pads that only grip the workpiece.
Non-marking surfaces make it safe for finished panels where mechanical clamps would require protective padding and careful positioning.
Vertical capability removes the constraint of flat-only clamping for shops that process panels in standing orientation.
Pneumatic operation allows fast, repeatable grip and release without the fatigue of manual clamping on high-volume runs.
