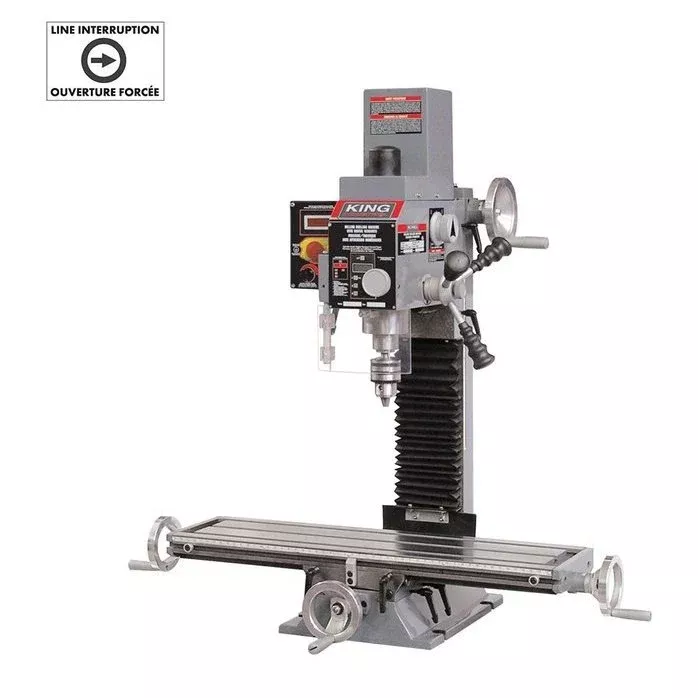

King KC-20VS-2 – Milling Drilling Machine with Digital Readouts

Description

• Powerful 1 HP single phase DC motor
• Safety guard with limit switch protection
• Magnetic line interruption switch needs a restart after a power failure
• Spindle depth digital readout and control panel with metric and imperial readings
• Spindle RPM digital readout
• Spindle depth fine feed knob
• Forward/reverse switch and variable speed selector dials
• Comes with 1/2″ chuck, chuck key, R8 chuck arbor, safety guard, 2 T-bolts, oil bottle, adjustment wrenches, hex. keys and tool box

• DRILLING CAPACITY IN CAST-IRON: 3/4″
• DRILLING CAPACITY IN STEEL: 5/8″
• MAX. DISTANCE SPINDLE NOSE TO TABLE: 13″
• SWING: 13″
• SPINDLE TAPER: R8
• SPINDLE STROKE: 2″
• VARIABLE SPEEDS: 2 (50-1,125 / 100-2,250) RPM
• FACE MILL CAPACITY: 2-1/2″
• END MILL CAPACITY: 3/4″
• MAX. LONGITUDINAL TRAVEL: 18-7/8″
• CROSS TRAVEL: 6-7/8″
• WORKING AREA OF THE TABLE: 7-1/16″ x 27-1/2″
• SIZE OF T-SLOT ON TABLE: 1/2″
• MOTOR: 4.8 Amp., 2,250 RPM
• VOLTAGE: 120V, 1 phase, 60 Hz
• ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT: 27-1/2″ x 29-5/8″ x 35-3/8″ / 264 lbs
• PACKAGING DIMENSIONS (LXWXH) / WEIGHT: 17-1/2″ x 16-1/2″ x 32-1/2″ / 308 lbs
• UPC: 7 72995 01009 7
