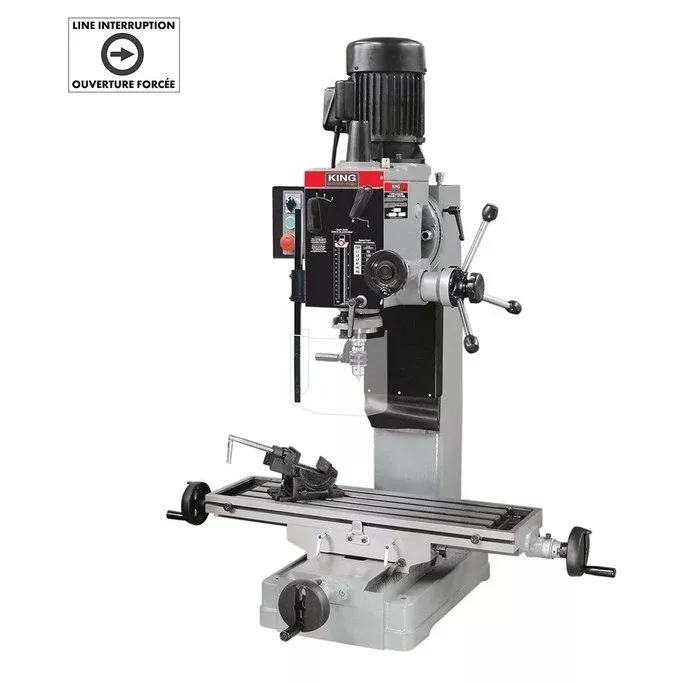

GEARHEAD MILLING/DRILLING MACHINE WITH SAFETY GUARD

Sale!
GEARHEAD MILLING/DRILLING MACHINE WITH SAFETY GUARD

GEARHEAD MILLING/DRILLING MACHINE WITH SAFETY GUARD

Original price was: $3,599.40.Current price is: $2,449.44.

41 in stock

SKU: KC-45 Category:

Description

  • Safety guard with limit switch protection
  • Magnetic line interruption switch needs a restart after a power failure
  • Powerful 1.5 HP single phase motor
  • Spindle is equipped with four heavy-duty tapered roller bearings
  • Forward and reverse switch
  • Table control hand wheels have large micrometer dials graduated in .001″
  • Comes complete with 3″ face cutter, 3-1/2″ angle vise and safety guard
  • Optional Stand Available

  • Specification

    • DRILLING CAPACITY1-1/4″
    • MAX. DISTANCE SPINDLE NOSE TO TABLE18″
    • SWING20-7/16″
    • SPINDLE TAPERR8
    • SPINDLE STROKE5″
    • SPEEDS6 (60-1,500) RPM
    • FACE MILL CAPACITY4″
    • END MILL CAPACITY1-1/4″
    • MAX. LONGITUDINAL TRAVEL20-1/2″
    • MAX. CROSS TRAVEL8-1/4″
    • WORKING AREA OF THE TABLE9-1/2″ x 32-1/4″
    • SIZE OF T-SLOT ON TABLE5/8″
    • MOTOR11 Amp.
    • VOLTAGE220V, 1 phase, 60 Hz
    • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT47″x 34″ x 55″ / 700 lbs
    • PACKAGING DIMENSIONS (LXWXH) / WEIGHT35-3/4″ x 28-7/8″ x 48-3/4″ / 772 lbs
    • UPC7 72995 15015 1
