Diamond Core Drill Motor – Holes up to 14″ dia. in Concrete, Reinforced Concrete and Masonry materials
High torque, easy operation and solid, sturdy construction make this motor ideal for construction applications
3-speed gearbox with oil bath lubrication
Holes up to 14″ diameter
Mechanical Slip Clutch Design
Load Speeds: 230/500/1030 RPM
Dovetail slide plate for quick mounting to our drill stand (BST 300 V)
20 Amps., Weight: 28 lbs. (motor only)
Industry’s most lightweight and portable combination of drill stand and motor

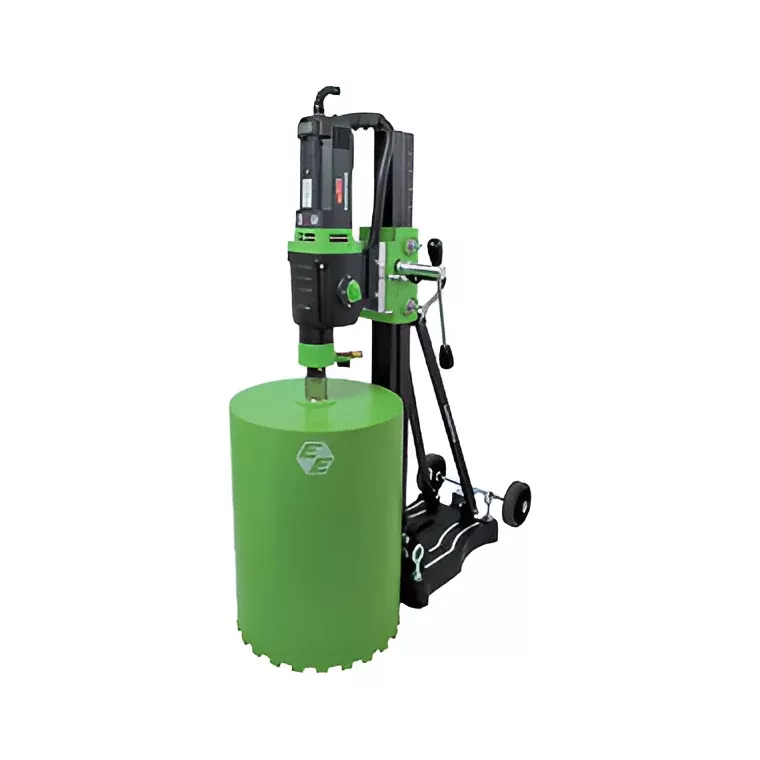

The EBM 352/3 PSA (20 Amp 3-speed motor with combination anchor/vacuum stand) drills holes up to 14″ diameter in concrete, reinforced concrete, asphalt and natural stone. The motor can also be mounted on a variety of drill rigs. No other Diamond Core Drill Rig in this class is so light and portable, weighing only 77 lbs. The drill stand has two 5″ wheels for easy portability.
Use
Wet drilling in reinforced concrete, natural stone and asphalt
Ideal for plumbing, mechanical, electrical and general construction, as well as civil engineering
Motor Features
Powerful 20 Amp motor with high power reserves and a long lifetime
3-speed oil bath gearbox – for optimal lubrication in all working positions, due to the developed oil pump
Mechanical safety clutch
Dovetail slide mount– fasten the motor to the drill rig without any tools. Also mounts to a variety of drill stands.
Integrated bubble levels on the motor
Temperature control and over current cut-off, optical overload indication, constant speed
Service-LED – lights up approx. 10 working hours before the carbon brushes need to be replaced
Drill Stand Features
Column of the rig can be adjusted to 45˚
Compact combination base – fixing with anchor or vacuum (BST 300 V)
Feed lever change without any tools – easy change on the jobsite
Integrated bubble level and hole centering aid for precise drilling
