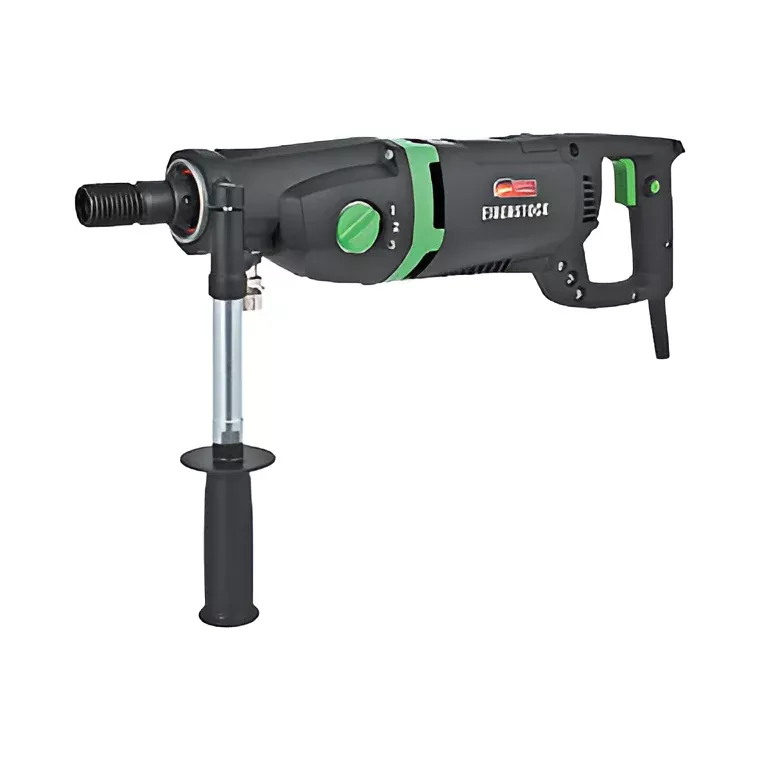

CS Unitec Diamond Wet/Dry Core Drill

---

Product Description

The versatile combination CORE DRILL FOR WET OR DRY APPLICATIONS

Model ETN 162/3 P is a versatile Wet or Dry Diamond Core Drill with a Water Swivel and Dust Extraction Port built directly into the spindle. It easily connects to a vacuum for dust extraction. The drill stand mount allows the operator to switch from hand-held to stand-mounted drilling quickly. The drill stand is adjustable up to 45°. Core drill includes dry/wet diamond core drill bit connections 5/8″ x 11 UNC and 1-1/4″ x 7 UNC.

Optional accessories include anchor stand (with or without vacuum pump), centering aid, portable water tank, water collection ring kit and Unicore Diamond Core Bits



VALUE  Drilling Diameters for Concrete and Brickwork Dry/Wet Diamond Core Drilling

Concrete (Wet)	Gear 1: 3-1/4″ to 6-3/8″* Gear 2: 1-3/4″ to 3-1/4″ Gear 3: 1/2″ to 1-3/4″
Brickwork (Dry)	Gear 1: 4-1/4″ to 8″* Gear 2: 2-1/4″ to 4-3/4″ Gear 3: 1/2″ to 2-1/4″

with drill rig

The most powerful hand-held Diamond Core Drill in the industry!

• Holes up to 8″ diameter hand-held dry drilling in masonry, brick and block
• Hand-held wet drilling up to 3-1/4″ diameter in concrete
• Rig-mounted drilling up to 6-3/8″ diameter in concrete
• Mechanical Slip Clutch Design
• 19.5 Amps and 3 mechanical speeds
• Load Speeds: 0-510 / 0-1150 / 0-2500 RPM

Use

• Wet drilling in reinforced concrete, natural stone and asphalt
• Dry core drilling in limestone, brick, block and other abrasive materials
• Ideal for plumbing, mechanical and electrical construction, as well as civil engineering and landscape construction

Features

• 3 speed oil bath gearbox – for optimal lubrication in all working positions, due to the newly developed oil pump
• Mechanical safety clutch
• Built-in 1-1/4″ x 7 UNC spindle; 5/8″ x 11 UNC adapter included
• Combination spindle with integrated connection for centering rod – fast, precise spot drilling
• Changing system – fast conversion between wet and dry applications
• Integrated leveling bubbles on the machine and hole center indicator allow for precise drilling
• Quick-mounting system – apply the motor to the drill rig without the need for tools
• Column of the rig can be adjusted to 45˚
• Compact combination base – fixing with anchor or vacuum (vacuum pump required)
• Feed handle changeover without any tools – easy change on the jobsite
• Temperature control and overcurrent cut-off, optical overload indication, constant speed
• Service-LED – lets you know when the carbon brushes need changing (works for approx. 10 working hours before shutdown)
• Removable wheel axle (accessory) – easy transport

Specifications

Power input	19.5 Amp
Rated Voltage	110 V
Load Speeds (RPM)	0-510 / 0-1150 / 0-2500
Drilling Diameter	3″
Spindle Connection	1-1/4″x7 UNC 5/8″x11 UNC
Collar Diameter	60mm
Weight	15 lbs (motor only)
Supplied	In a molded carrying case with water swivel, gardena hose connector, dust extraction port, 5/8″ x 11 UNC adapter and open wrench SW 32 + 41
