Breathing Air Inline Filtration Panels | Allegro

Description

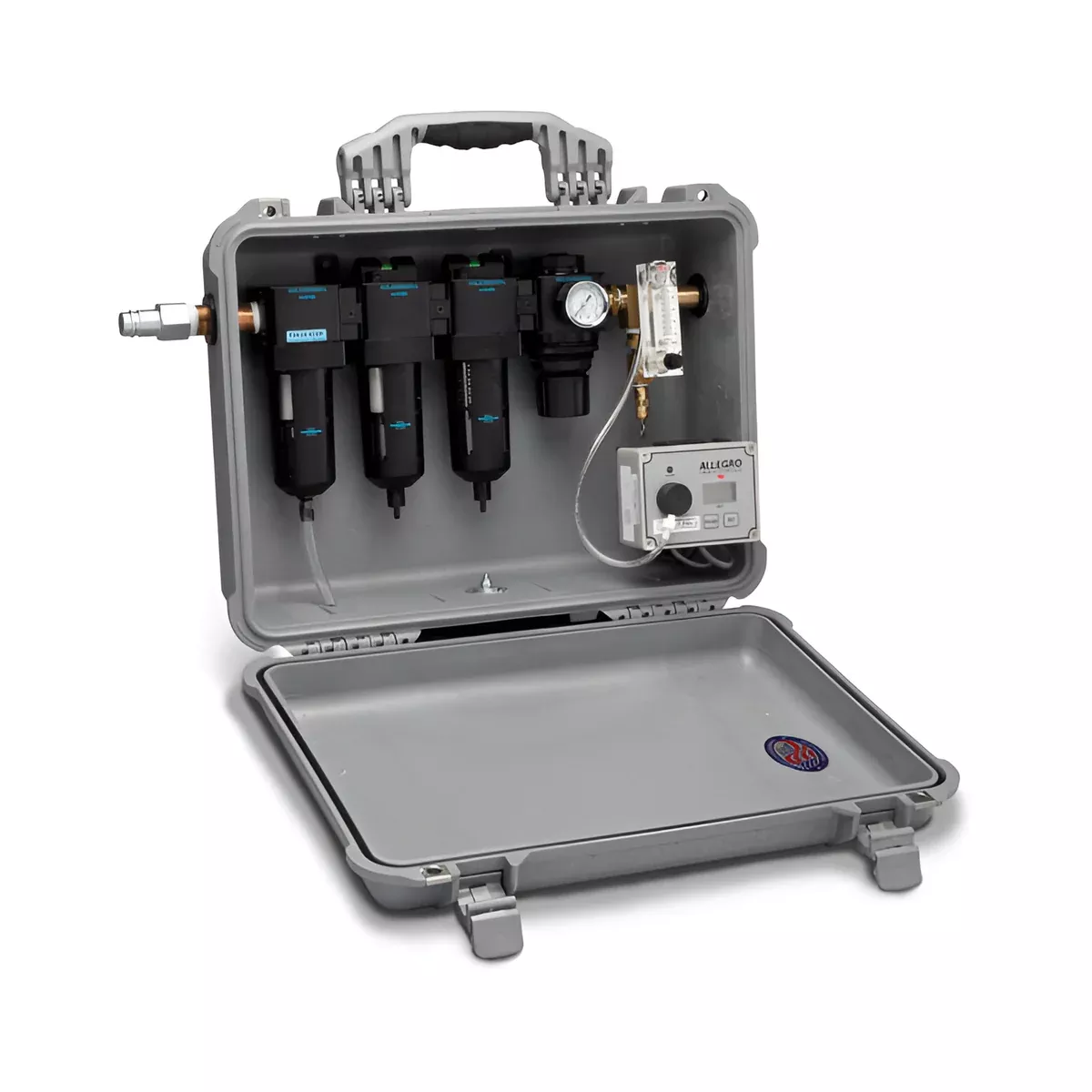

Allegro Breathing Air Inline Filtration Panels

---

Product Description

Filters impurities and hydrocarbons from an air compressor to convert to breathable air

Our Carry-Air™ Filtration Panels convert shop air used for pneumatic tools and equipment to clean breathable air. They provide from 1 to 8 airline respirators a portable source of up to 15, 30, 60 or 100 CFM of breathable air from 5-125 psig. The 3-stage filtration system purifies compressed air removing water, oil and particulate contaminants. An optional carbon monoxide monitor, which can be operated in AC or DC mode, activates an audible alarm when the concentration of CO exceeds 10 ppm (set for 5 ppm in Canada). The pressure regulator includes a pressure gauge and adjustment knob with locking ring. A pressure relief valve protects the CO monitor and respirators in the event of regulator failure. The Carry-Air™ AC/DC-powered unit is housed in a rugged Pelican case for portability and protection. It includes a support stand for stability and up-right operation. An AC/DC powered Wall-Mount unit is also available. Available with and without CO monitors. All models meet NIOSH requirements for point-of-attachment. Single outlet and single inlet, 100 CFM Panel ideal for filtering air anywhere within the air line systems.

Features

• Available in 1-8+ worker configurations
• Available with and without CO monitor
• A portable source of up to 15, 30, 60 or 100 CFM of breathable air from 5-125 psig
• 3-stage filtration system
• Portable, rugged Pelican case
• 16-gauge powder-coated steel stand
• All brass plumbing with quick-disconnect Hansen couplers
• 115V AC to 9V DC power adapter
• Made in USA


Specification

ITEM	Descriptions
9878-100	Carry-Air™ Inline Filtration Panel
9878-150	Wall-Air™ Inline Filtration Panel w/CO Monitor
9878-151	Wall-Air™ Inline Filtration Panel w/o CO Monitor

Application

• Manufacturing
• Painting
• Utilities
• Industrial

Product Documents

Carry-Air Inline Filtration Panel

Wall-Air Inline Filtration with CO Monitor

Wall-Air Inline Filtration Panel without CO Monitor

Parts List
