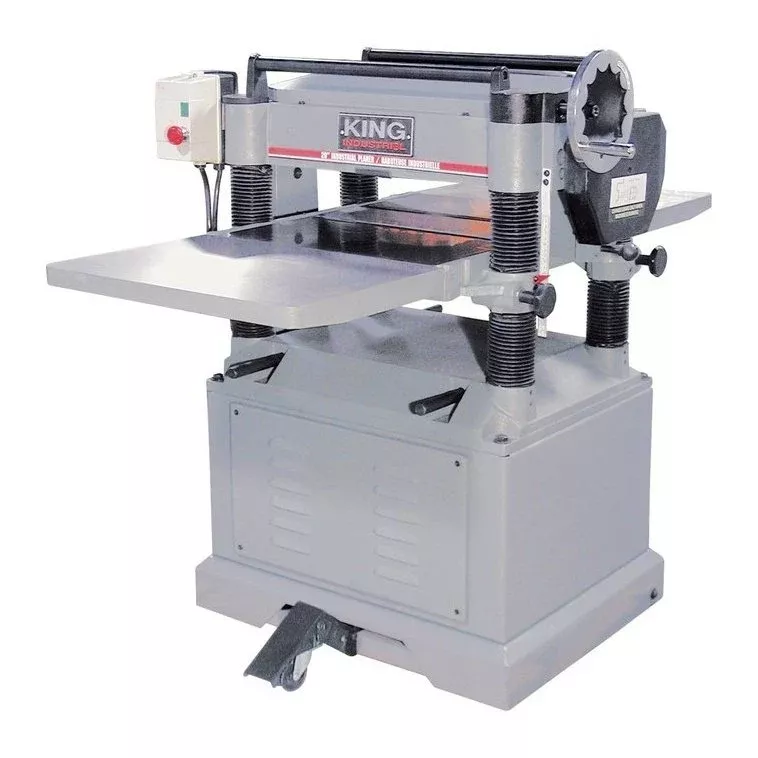

20″ Industrial Planer With Spiral Cutterhead

Description

Additional Shipping Charges will Apply, Your order will be processed once rate is calculated

Features

• Powerful 3 HP motor
• Solid cast-iron extension tables
• Mobile base system built into cabinet
• A spiral cutterhead is 50% quieter than a conventional cutterhead
• Table raises and lowers on four precision‚ ground columns for extra stability
• Anti-kickback fingers in front of the infeed roller prevents wood kickback
• Magnetic safety switch
• Lever allows you to shift gears for changing feed rates for excellent results in planing hard and soft woods
• Comes with knife setting gauge and 5’ dust chute

Specification

• MODELKC-526FX
• MAXIMUM PLANING WIDTH20″
• MAXIMUM PLANING THICKNESS8″
• MAXIMUM DEPTH OF CUT3/32″
• TOTAL SURFACE OF WORK TABLE56-1/2″ x 20″
• CUTTERHEAD SPEED5,000 RPM
• CUTTERHEAD DIAMETER3.15″
• NUMBER OF KNIVES98 (14 x 14 x 2mm)
• FEED RATE2 (16-20) FPM
• NUMBER OF CUTS PER INCH104-83
• MOTOR19 Amp.
• VOLTAGE220V,1 phase, 60 Hz
• ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT40″ x 56-1/2″ x 42″ / 830 lbs
• PACKAGING DIMENSIONS (LXWXH) / WEIGHT38-1/4″ x 29-1/4″ x 47-1/8″ / 860 lbs
• UPC7 72995 01224 4
