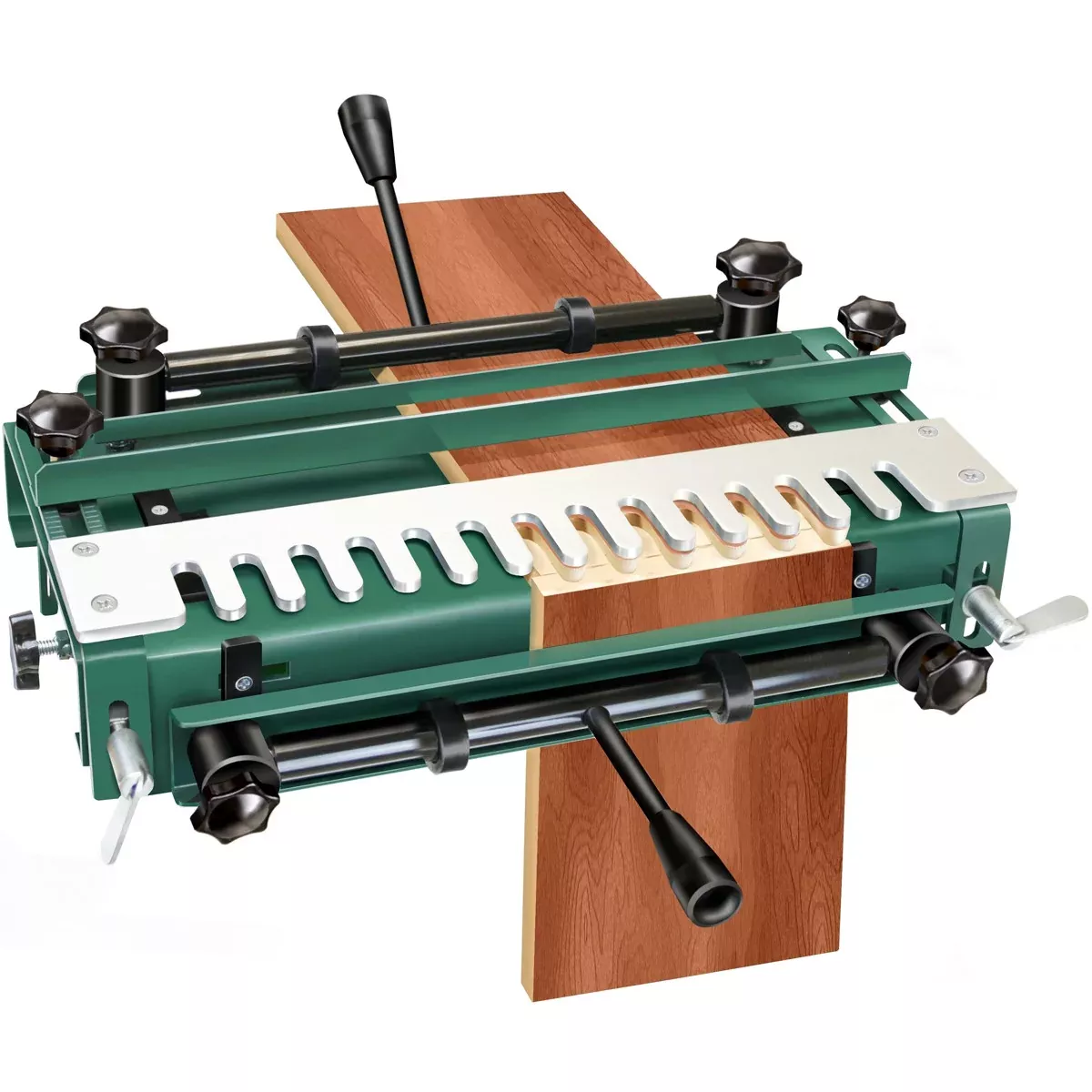

12″ DOVETAIL JIG

Description

CT052N

12″ Deluxe Dovetail Jig – CRAFTEX

The New and Improved Independent Template Height Adjustment feature on CT052N allows the user to adjust the template to the desired height independent of the fence. The CT052N features a solid and durable construction and is a perfect jig for making fast and accurate dovetail joints.

With this 12″ dovetail jig you can cut male and female dovetail joints simultaneously, and create perfectly matching dovetail joints.

SPECIFICATIONS:

Product Size: 15″ x 11″ x 6-3/4″
Side Stops Offset Capacity: Up to 1″ (25mm)
1/2″ Aluminum Comb is CNC Machined
General Construction: Heavy Forced Stamped Steel for Rigidity and Long Life
Comb Size: 1/2″ comb finger
Thickness Capacity: 12″ Wide and 5/16″ to 1-1/14″ Thick
Net Weight: 10 Kgs

Optional Kit
B755KIT optional kit contains the following (105127, B24211N, B2422)

NOTE: B755KIT is suitable for use with combs of CT052, CT052716 and CT052916, CT052516, CT154 and requires a 1/4″ cutter and a 5/16″ follow

FeaturesMotor 1/2 HP – 4 AMP, 110V, 3450 RPM with keyed switch Table Size Two 12″ x 8″ cast aluminum tables, one with a 3/4″ mitre gauge slot Bed Size 12 1/2″ x 4 3/4″ Belt Size 4″ x 36″ Quick Release Belt Speed 2,200 F.P.M Approx. Pulley Size for Contour 21/2″ Overall Height 20″ x 15″ x 17″High Gross Weight 30 kg Carton Size 24″ x 18″ x 17″
 Craftex 2 Year Warranty
