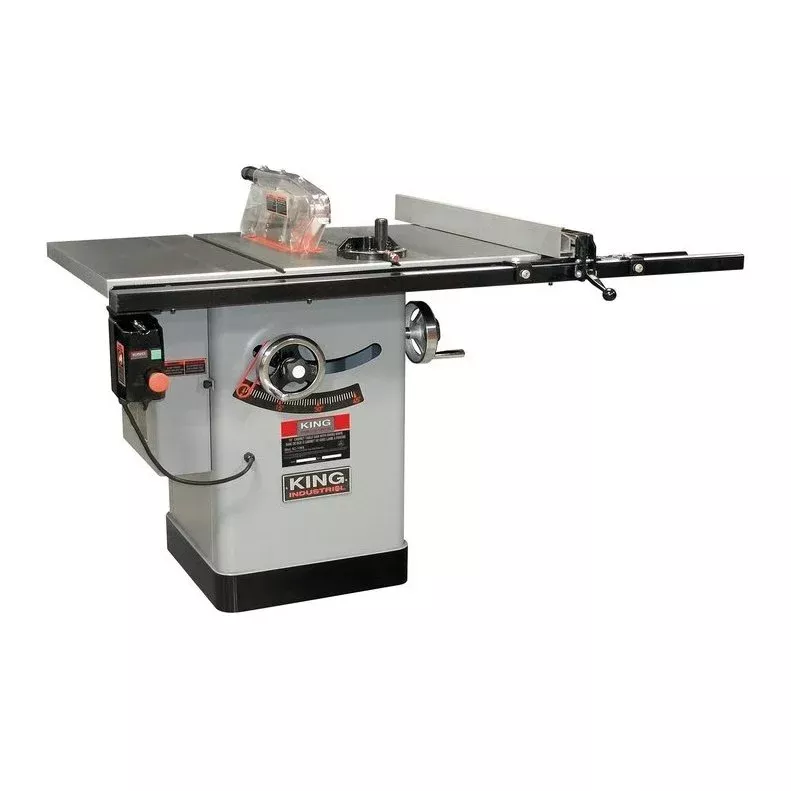

10″ Cabinet Table Saw

Description

Features

• Powerful 2.5 HP, 230V motor
• Heavy-duty cast-iron table and extension tables are double ground for accuracy and finish
• Riving knife system for maximum operator safety
• Table has “T” slots for miter gauge and beveled front edge
• Magnetic safety switch
• Large 8″ diameter chromed handwheels with center locking knobs
• Comes with 10″ x 40 tooth carbide tipped saw blade, cast-iron miter gauge, standard and dado inserts, push stick storage hooks and hex. keys
• 50″ Max rip capacity

Specification

• MODELKC-10KX/U50
• BLADE DIAMETER10″
• BLADE TILTSLeft
• DEPTH OF CUT AT 45°2-3/16″
• MAXIMUM DEPTH OF CUT AT 90˚3-1/8″
• SLIDING TABLE SIZE WITH EXTENSIONS40″ x 27″
• DIAMETER OF ARBOR5/8″
• ARBOR SPEED (RPM)3,850
• MOTOR2.5 HP, 9.6 Amp.
• VOLTAGE230V, 1 phase, 60 Hz
• WEIGHT410 lbs
• UPC7 72995 01493 4
